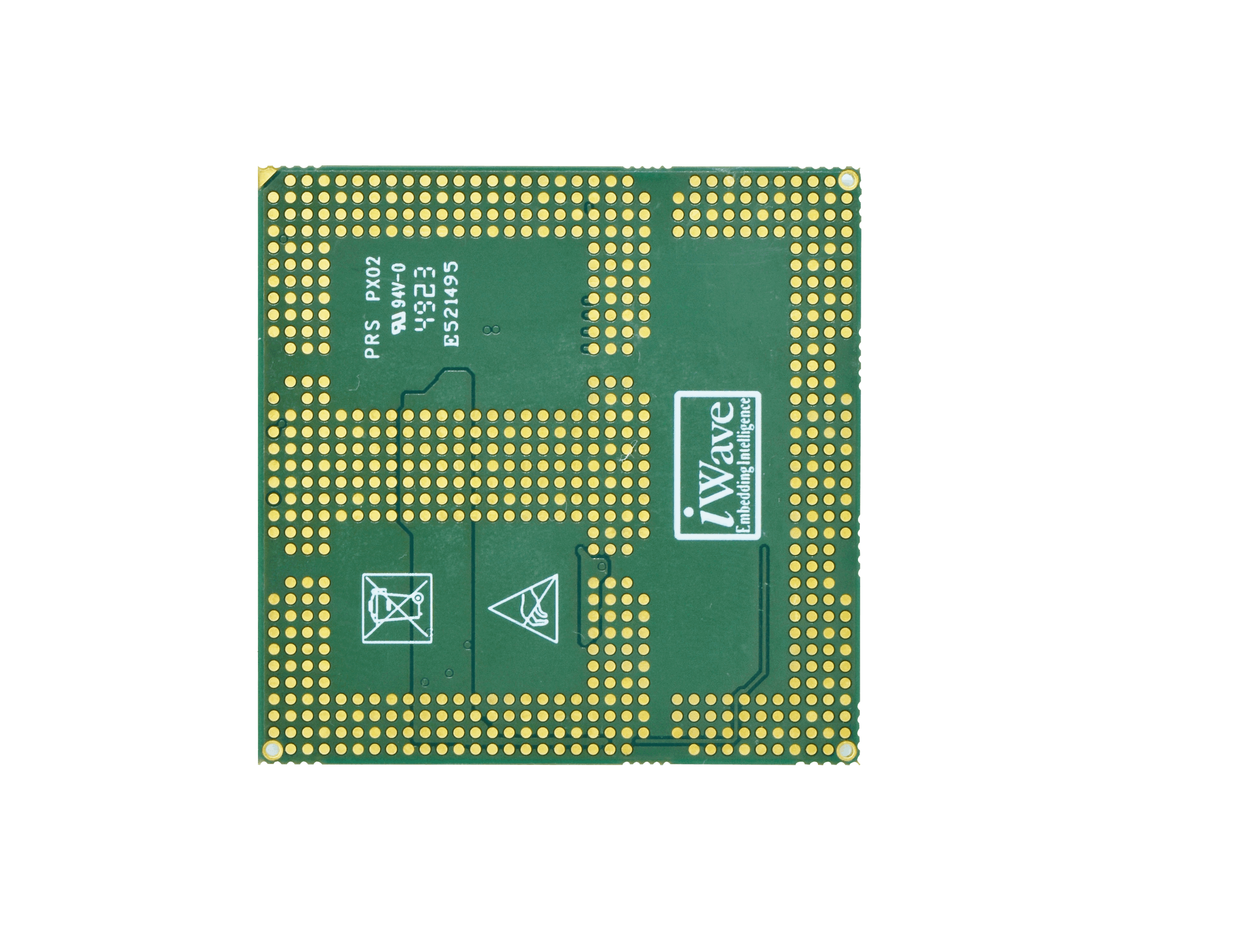

TI AM62Ax Based OSM-LF Module

iW-RainboW-G55M^®

AM62Ax with 64-Bit Quad Arm Cortex-A53
Dual core ARM Cortex-R5F Subsystem
2GB LPDDR4 Expandable up to 8GB and 16GB eMMC Flash
C7xV-256 Deep Learning Accelerator (2 TOPS)
Supports Low power mode by Device Manager
IEEE 802.11 a/b/g/n/ac/ax Wi-Fi + BT 5.3 + IEEE 802.15.4
AEC-Q104*
OSM v1.1 Size-LF LGA Solderable Module

Categories: OSM Modules, System On Modules

MOUSER

SPECIFICATION

On Module Feature:

CPU	4 x Arm Cortex-A53@1.4GHz 1 x Arm Cortex-R5F (Integrated as part of MCU Channel with FFI) @800MHz 1 x Arm Cortex-R5F (Integrated to support Device Management) @800MHz
Memory	2GB LPDDR4 expandable up to 8GB 16GB eMMC Flash expandable up to 128GB 16Mb QSPI Flash
Other	IEEE 802.11 a/b/g/n/ac/ax Wi-Fi + BT 5.3 + IEEE 802.15.4

OSM BGA Features:

Main Domain

RGMII x 2 Port
USB2.0 x 2 Port
SD(4-Bit) x 1
MIPI CSI x 1(4 Lane)
RGB-18 bit
CAN x 1 Port
I2C x 2 Port
QSPI x 1 Port (With CS1)
Audio x 1 Port
UART x 2 Port
Debug UART x 1 Port
JTAG x 1 Port
GPIO x 3
PWM x 2
Boot Mode

MCU Domain

MCU_MCAN x 1
MCU_I2C x 1
MCU_SPI x 1 (With 2 chip selects)
MCU_UART x 1
WKUP_UART x 1
MCU_GPIO x 8

OS Support:

Linux 5.10.153 (or higher)
Free RTOS

General Features:

Power Input	5V, 2.5A through OSM BGA
Form Factor	45mm x 45mm
Operating Temperature	-40°C to +85°C (AEC-Grade 3)
Environment Specification	REACH & RoHS3 Compliant

THERMAL SOLUTIONS

For any highly integrated OSM Modules, thermal design is very important factor. iWave Supports Heat Sink and Heat Spreader solution for TI AM62Ax OSM LGA Module.

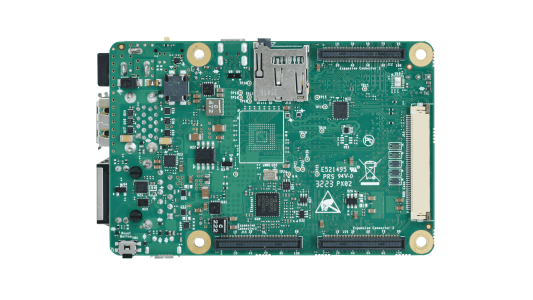

TI AM62Ax OSM BASED SBC

AM62Ax with 64-Bit Quad ARM Cortex® A53 & Dual core ARM Cortex®-R5F Subsystem
2GB LPDDR4 memory and 16GB eMMC Flash
16Mb QSPI NOR Flash
C7xV-256 Deep Learning Accelerator (up to 2 TOPS)
IEEE 802.11 a/b/g/n/ac/ax Wi-Fi + BT 5.3 + IEEE 802.15.4
Gigabit Ethernet Jack x 1
USB2.0 OTG Micro-B Conn x 1
USB2.0 Header x 1
Debug UART Connector x 1
RTC Battery Connector x 1
Expansion Connector x 3 with support for:
RGMII, UART, SPI, CAN, PWM, I2S, I2C, JTAG & GPIOs
Compact Form Factor of 85mm x 56mm

ENCLOSURE

The Enclosure is essential for a SBC, iWave provides rugged Aluminum and metal enclosure options which keeps the device safe whilst maintaining full access to all the major ports.
