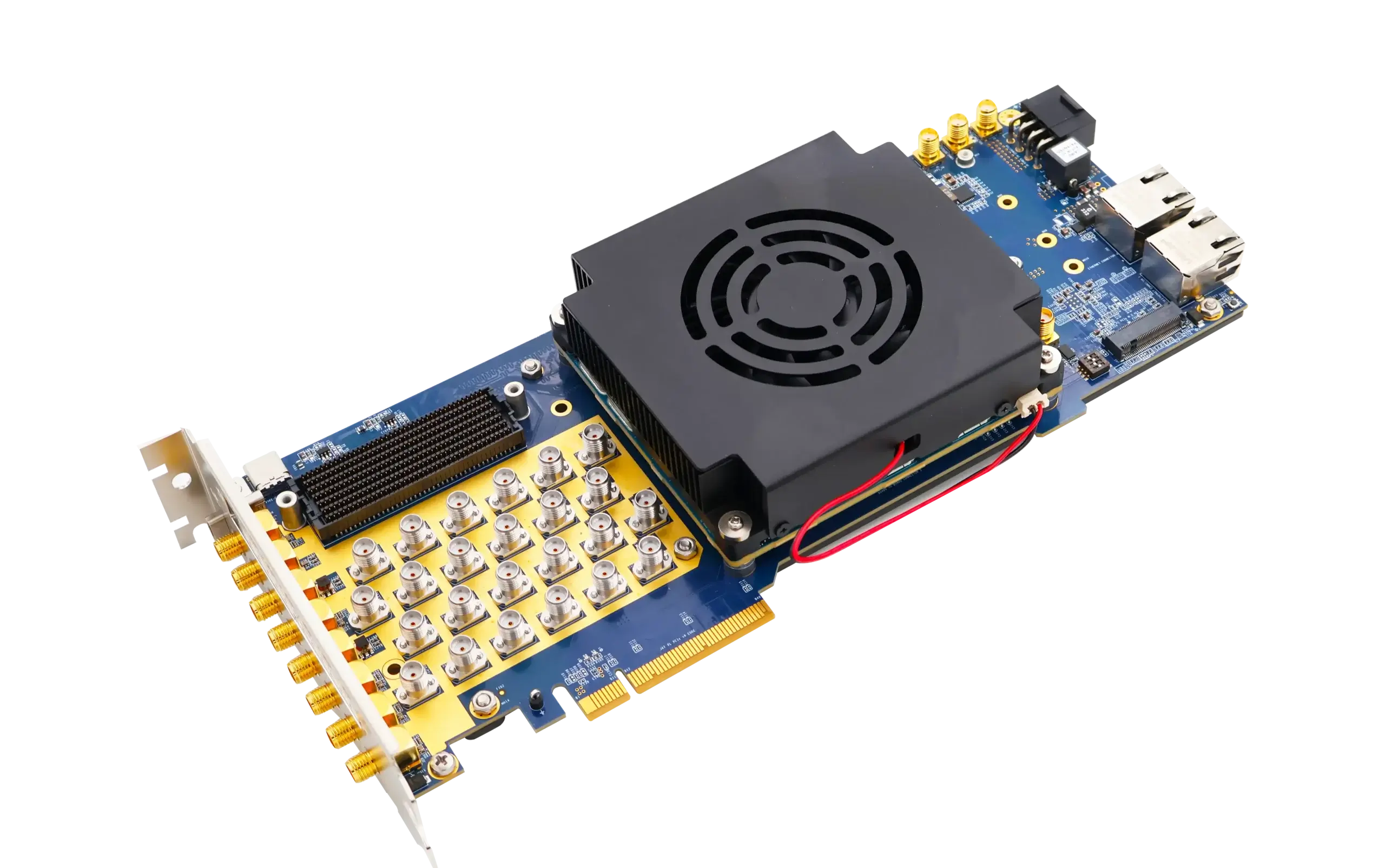

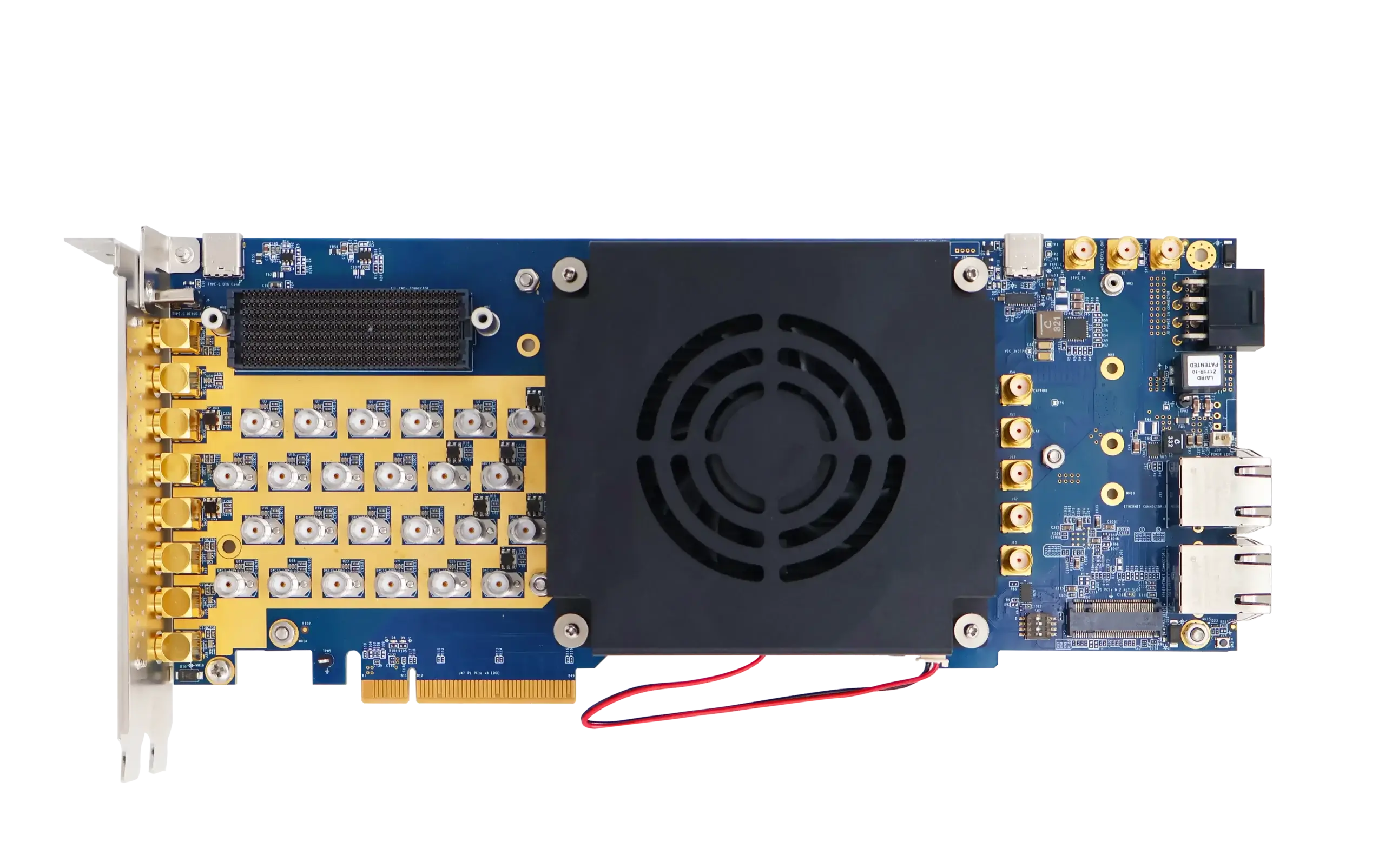

ADC & DAC PCIe Card Powered by RFSoC

Zynq Ultrascale+ RFSoC ZU49DR/ZU39DR/ZU29DR	Processing System (PS/Processor) Quad/Dual Arm Cortex-A53 @1.3GHz, Dual Cortex-R5F @533MHz 16x DAC Ports support max date up to 9.85Gsps 16x ADC Ports support max date up to 2.5Gsps PL GTY High Speed Transceivers x16 @28.21Gbps
RAM Memory	8GB, 64bit DDR4 RAM with ECC for PS 8GB, 64bit DDR4 RAM for PL
Flash Memory	256MB QSPI Flash for Booting 32GB eMMC Flash for Storage Micro SD slot from PS M.2 NVMe Slot from PS with PCIe Gen2 x2/x4 interface
ADC Channels (x16)	1 x Right Angle SMA connector on Front Panel with Balun (BW 10MHz to 3GHz) 3 x Right Angle SMA connectors on Front Panel with Balun (BW 3.1GHz to 5.8GHz) 3 x Straight SMA connectors with Balun (BW 10MHz to 3GHz) 9 x Straight SMA connectors with Balun (BW 3.1GHz to 5.8GHz)
DAC Channels (x16)	1 x Right Angle SMA connector on Front Panel with Balun (BW 10MHz to 3GHz) 3 x Right Angle SMA connectors on Front Panel with Balun (BW 3.1GHz to 5.8GHz) 3 x Straight SMA connectors with Balun (BW 10MHz to 3GHz) 9 x Straight SMA connectors with Balun (BW 3.1GHz to 5.8GHz)
Clock & PLL	Integrated Configurable ultra low noise PLL for ADC & DAC Fully Configurable Clock Synthesizer with SyncE and PTP support 4 x SMA Straight connector for clocks(10MHz IN, 1PPS IN, Synchronous Clock In & Out)
Host Interface	PCIe Gen4 (Up to )x 8 Edge Connector
Expansion	FMC+ High serial Pin connector (HSPC) Connector 8 channel GTY Transceivers @ up to 28.21Gbps 2 GTY Reference Clock 48 LVDS IOs/96 Single ended (SE) IOs from PL Banks
Others	Two RJ45 1GbE Ethernet Port on Back Panel from PS Display port through USB-Type-C connector from PS RTC Battery Header 4 x GPIO SMA Straight Connectors
Debug	Integrated JTAG Programming/Emulator Module USB TypeC Debug Port on Front Panel for PS Debug UART, DATA UART and JTAG
Thermal	Fan sink (by default)
Operating Temperature	-30°C to +85°C (Industrial)
Power	75W max from PCIe x 8 Host 8Pin ATX Power Connector in Back Panel Power Droop Sharing (to maximize power when needed) Power dissipation is application dependent
Form Factor	254mm x 111.15mm (¾ Length PCIe)
Compliance	RoHS Compliant REACH Compliant CE*

* Under Progress

Custom Design Sevices

iWave provides end-to-end ODM services, from concept to production, leveraging our in-house expertise in hardware design, software development, FPGA design, and mechanical enclosure design. The FPGA expertise at iWave includes RTL, high speed bus interface and transceivers, storage, video, networking, and high-speed ADC/DAC with the entire product lifecycle, from initial concept to mass production and ongoing support.
