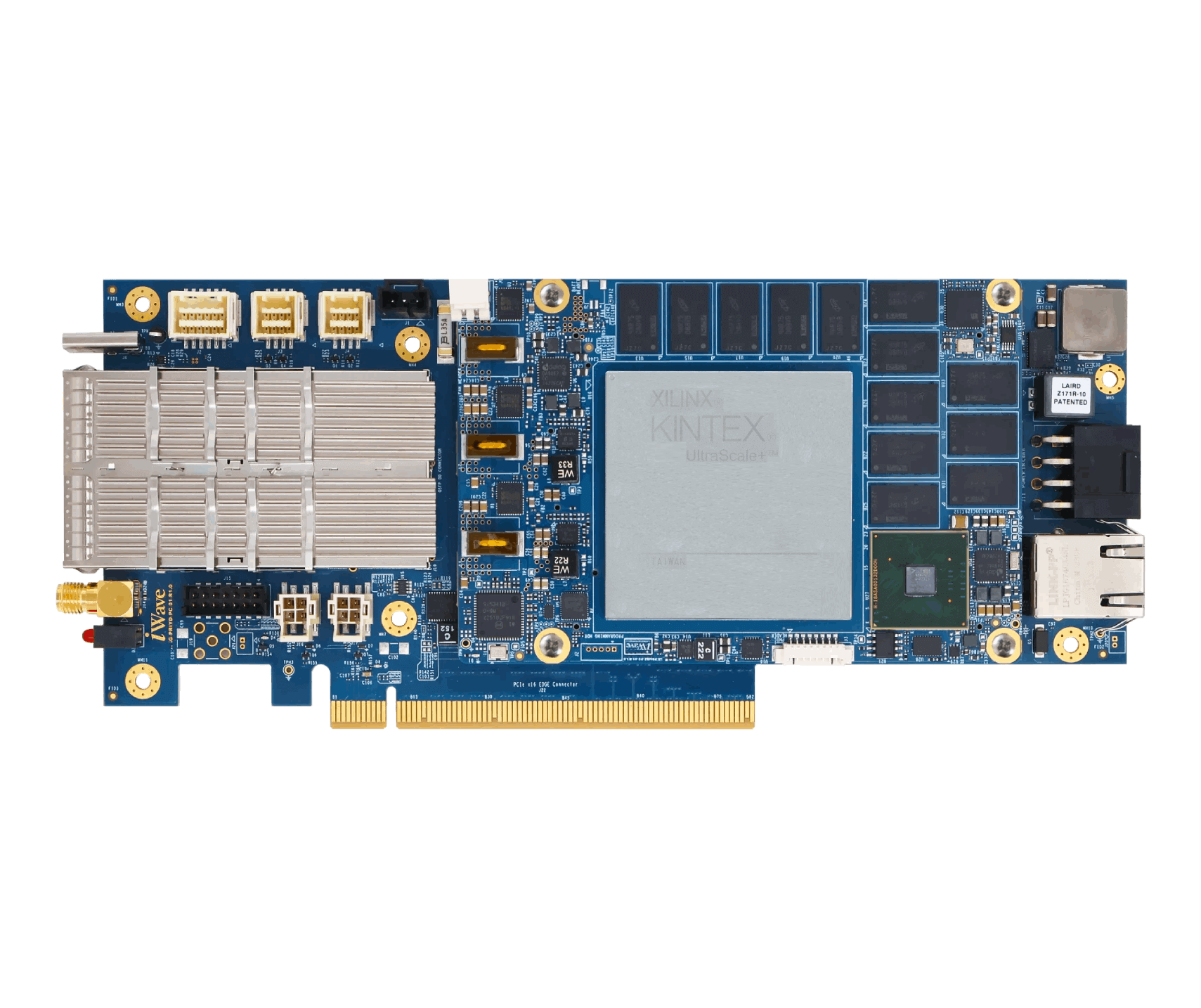

Kintex UltraScale+ PCIe Accelerator Card

Kintex UltraScale+

FPGA	Compatible with KU19P device System Logic cells up to 1,843K Logic cells and up to 1,685K Configurable Logic Blocks Gen3/2/1 Integrated PCIe block 100G Ethernet MAC cores for high-speed connectivity

CPU

QorIQ LS1021A Processor	Dual Arm® Cortex®-A7 MPCore compliant with Armv7-A™ architecture. LS1021A contains a dual-core Cortex-A7 cores running up to 1.2 GHz 32 KB instruction and data L1 cache with single bit error detection and correction, ECC protection on both instruction and data caches Up to 512 KB coherent L2 cache with single bit error detection and correction, ECC protection

Memory & Storage

Dual 4GB DDR4 RAM for FPGA with ECC
128MB QSPI Flash for FPGA
2GB DDR4 RAM for CPU with ECC
256MB NOR Flash for CPU
4MB MRAM for CPU
512KB SRAM for CPU

On-board Features

From FPGA	PCIe x16 Edge Connector through GTY Transceiver Dual QSFP-DD Connector through GTY Transceiver 2Kbit EEPROM Temperature Sensor 12V Fan connector x2 SMA connector x1 I2C x1 LED Driver connector x2 FPGA IO Header x1
From CPU	Gigabit Ethernet RJ45 MagJack Data UART x1 USB2.0 through Type C connector Debug UART Header
Other On-board Features	JTAG Header Clock Synthesizer for Board Interfaces and Transceiver reference clocks

General Features:

Power Input	12V Input from ATX Power connector
Form Factor	203.2mm x 88.8mm
BSP Support	Linux BSP – Linux 6.1.55 BareMetal BSP – Vivado 2024.2
Operating Temperature	-40°C to +85°C (Industrial)
Environment Specification	REACH & RoHS3 Compliant
Compliance	CE*

Custom Design Sevices

iWave provides end-to-end ODM services, from concept to production, leveraging our in-house expertise in hardware design, software development, FPGA design, and mechanical enclosure design. The FPGA expertise at iWave includes RTL, high speed bus interface and transceivers, storage, video, networking, and high-speed ADC/DAC with the entire product lifecycle, from initial concept to mass production and ongoing support.
