AD9084 based ADC and DAC FMC+ module

AD9084 based ADC and DAC FMC+ module

  • VITA 57.4 FMC HPC Connector
  • Quad 16-bit, 28 GSPS RF DAC
  • Quad 12-bit, 20 GSPS RF ADC
  • JESD204B/C Compatible
  • 14-Output High Performance Jitter Attenuator
  • 32Kb EEPROM for VITA57.4 Configuration Storage
Categories: ,

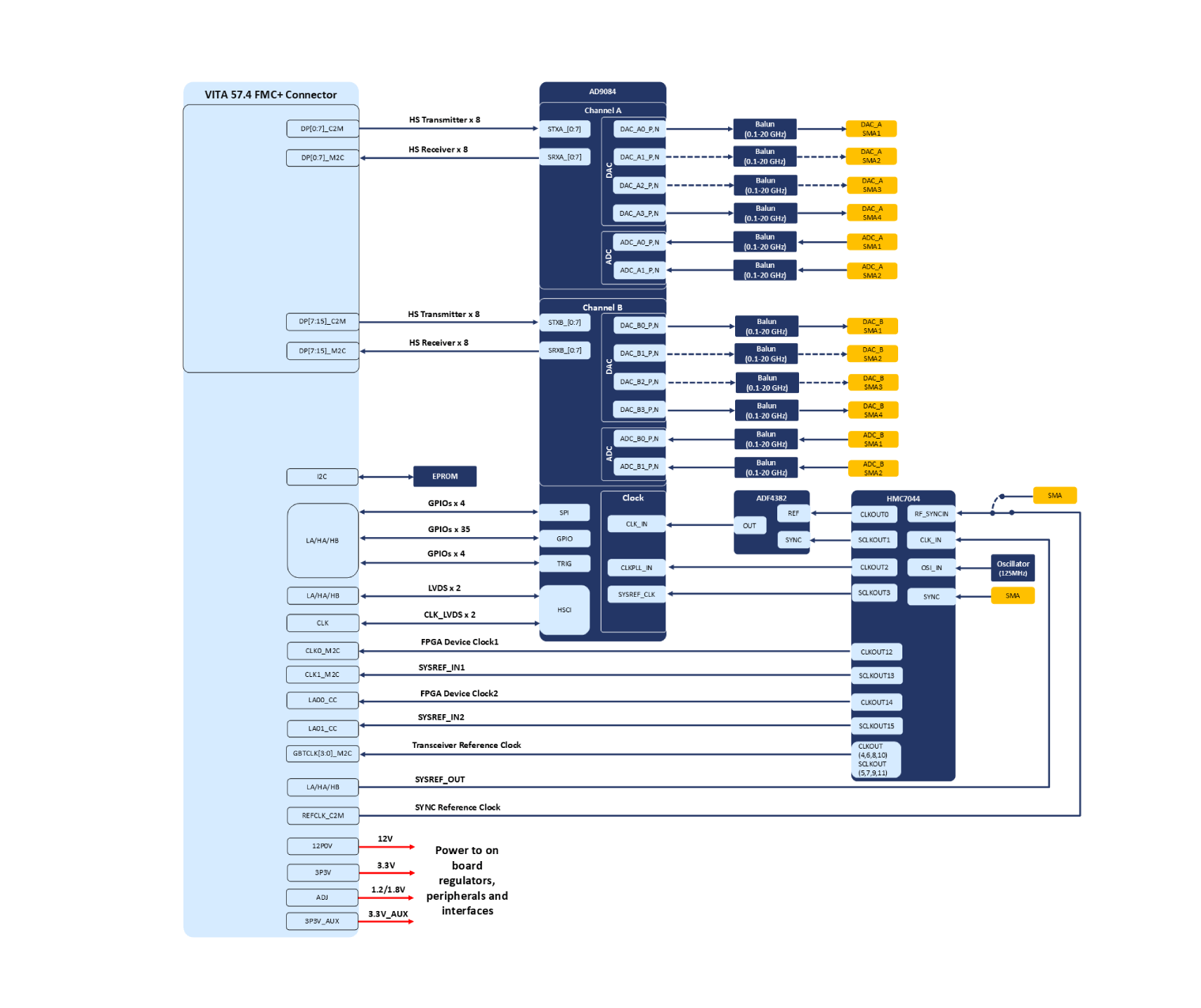

On Module Features

FPGA Mezzanine Connector (FMC+)

VITA 57.4 FMC+ HSPC Connector

SMA Connector

Up to 4 SMA for Channel A DAC
Up to 2 SMA for Channel A ADC
Up to 4 SMA for Channel B DAC
Up to 2 SMA for Channel B ADC
Up to 4 SMA for Clock inputs

Clock

14-Output High Performance Programmable Jitter Attenuator

Memory

32-Kb EEPROM for VITA 57.4 Configuration Storage

General Features

Power Input: 12V through FMC+ HSPC Connector
Compliance:

    • RoHS Compliant
    • REACH Compliant
    • CE*
