• Processing Systems (PS)
  • Quad/Dual Arm Cortex-A53 @1.5GHz, Dual Cortex-R5 @600MHz
  • Arm Mali-400MP2 GPU @677MHz
• Programable Logic (PL)
  • Upto 600K Logic Cells and 274K LUTs

• 64bit, 4GB PS DDR4 RAM with ECC (Upgradable)
• 16 bit, 1GB PL DDR4 RAM (Upgradable)
• 64GB eMMC Flash (Upgradable)
• 128Mb QSPI flash memory

P0:

• DC power input and other MISC signal

P1 & P2:

• 6# High speed GTH transceiver lanes from PL fabric
• 3# 1G Ethernet Interface
• 3# PCIe downstream ports
• 1# CAN, USB2.0, Data UART and Debug UART signals

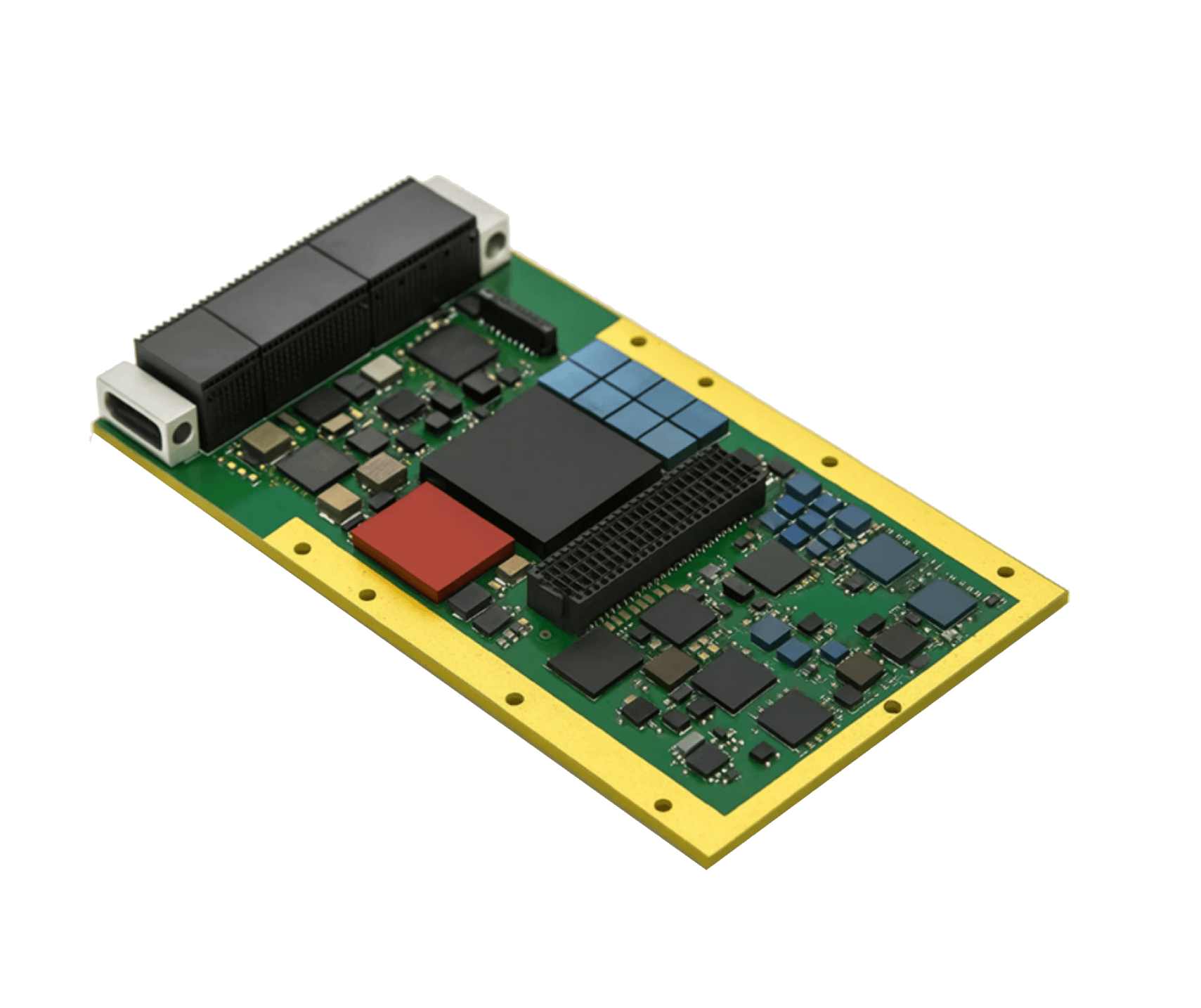

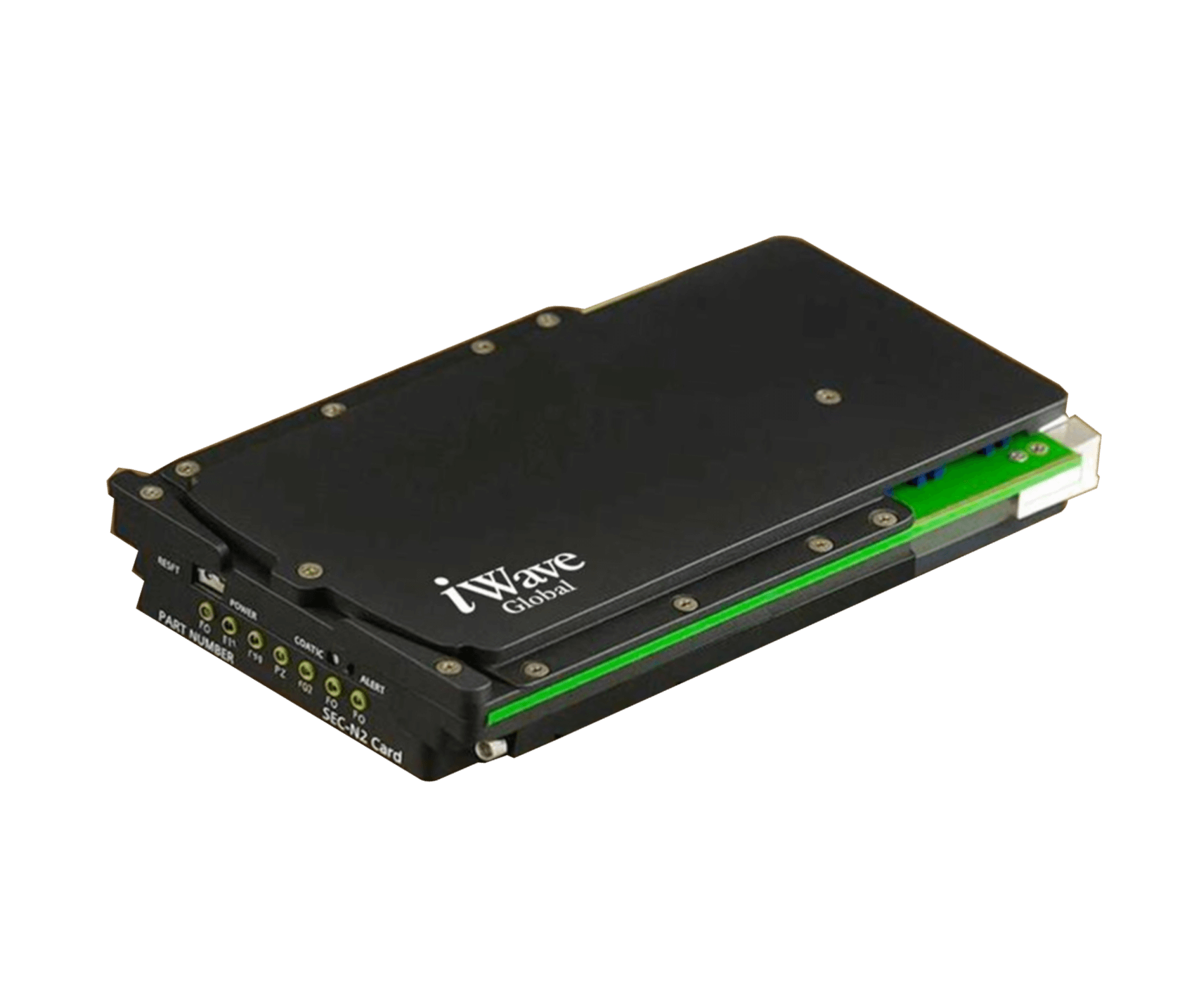

1 Inch Conduction Cooled

+5VDC +/- 5% input from VPX Connector

Linux

-40°C to +85°C

3U VPX (160mm X 100mm)

RoHS and REACH
