BUY NOW

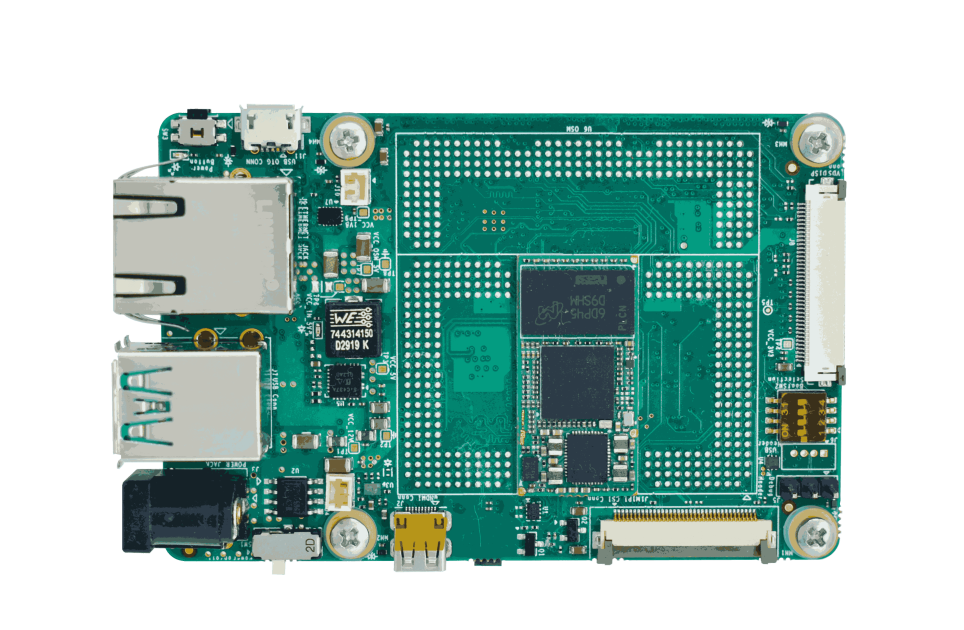

STM Top View

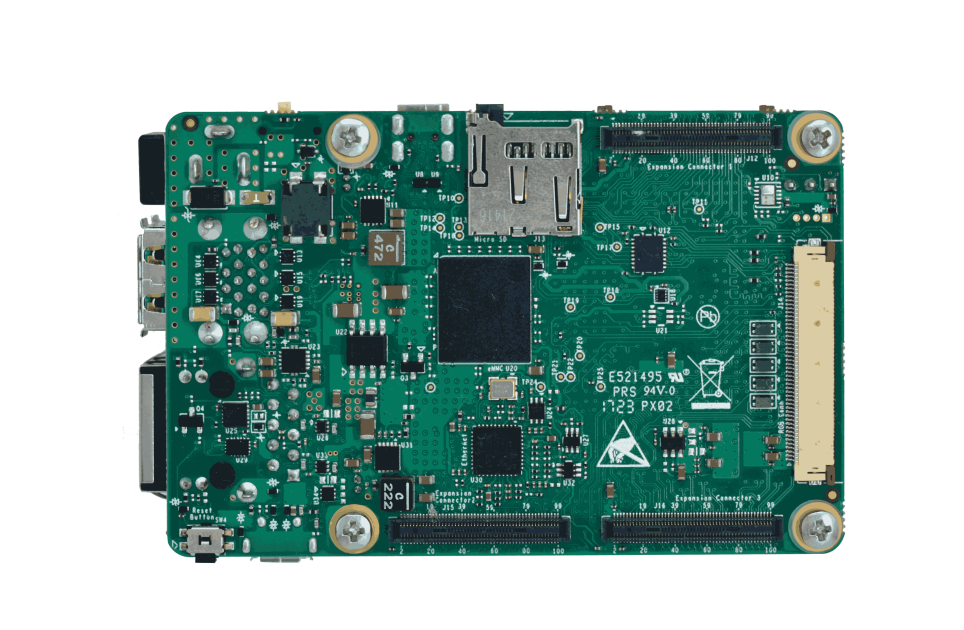

STM Bottom View

STM32MP13x OSM-0F LGA Module

STM32MP13x OSM-0F LGA Module

iW-RainboW-G54M^®

STM32MP13x with 32-bit Armv7 Architecture
512MB DDR3L Expandable up to 1GB and 16Mb QSPI Flash
Supports Cortex-A7 core
Supports 1× RGMII
10+ years of Product Longevity Program
OSM v1.1 Size-0F LGA Solderable Module

Categories: System On Modules, SODIMM Modules, Uncategorized

SPECIFICATION

On Module Feature:

CPU	STM32MP131: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography) STM32MP133: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography) STM32MP135: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography)
Memory & Storage	512MB DDR3L expandable up to 1GB 16Mb QSPI Flash

OSM LGA Features:

RGMII x 1
USB 2.0 OTG x 1
USB 2.0 HOST x 1
CAN x 2 (Available with STM32MP133 and 135 only)
UART x 4 (2 with flow control)
Debug UART x 1
SDMMC x 2 (1 x 4bit & 1 x 8bit)
I2S x 2
SPI x 2
I2C x 2
PWM x 6
JTAG x 1
OSM GPIOs x 16

OS Support:

Linux 5.15.67

General Features:

Power Input	5V, 0.5A through OSM BGA
Form Factor	30mm x 15mm (OSM Size-0)
Operating Temperature	-40°C to +85°C (Industrial)
Environment Specification	REACH & RoHS3 Compliant

STM32MP13x OSM based SBC

STM32MP13x MPU with Arm® Cortex®-A7
512MB DDR3L (Expandable up to 1GB)
Micro SD Slot
4GB eMMC (Expandable up to 128GB) Optional
16Mb QSPI NOR Flash
Gigabit Ethernet Jack x 1
USB2.0 OTG Micro-B Conn x 1
USB2.0 Header x 1
Debug UART Connector x 1
RTC Battery Connector x 1
Expansion Connector x 3 with support for: UART, SPI, CAN, PWM, ADC, I2S, I2C, JTAG & GPIO x 10
Compact Form Factor of 85mm x 56mm
