STM32MP135_OSM_Size S_Top_view
STM32MP135_OSM_Size S_Bottom_view

STM32MP13x OSM – SF LGA System on Module

STM32MP13x OSM – SF LGA System on Module

iW-RainboW-G54M®

  • STM32MP13x Solo Core CPU with 32-bit ARMv7 Architecture
  • 512MB DDR3L Memory (Expandable upto 1GB)
  • eMMC 4GB (expandable up to 128GB)
  • Supports Cortex-A7 core
  • Supports 2× RGMII
  • 10+ years of Product Longevity Program
  • OSM v1.1 Size – SF LGA Module
Categories: ,

On Module Feature:

CPU

STM32MP135: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography)
STM32MP133: 1 x Cortex-A7 (Available with and without Secure boot + Cryptography)
Memory

DDR3L – 512MB (expandable up to 1GB)
eMMC – 4GB (expandable up to 128)
EEPROM (16Kb)

OSM LGA Features:

  • RGMII x 2 Ports
  • USB2.0 Host x 1 Port
  • USB2.0 OTG x 1 Port
  • RGB (18bit) x 1 Port*
  • SDMMC (4bit) x 1 Port
  • SAI x 1 Port
  • UART with flow control x 2 Ports
  • UART w/o flow control x 2 Ports
  • Debug UART x 1 Port
  • CAN x 2 Ports
  • SPI x 2 Ports
  • I2C x 2 Ports
  • JTAG x 1 Port
  • PWM X 1 Port
  • ADC X 2 Ports
  • GPIOs x 7

OS Support:

  • Linux 6.1.28 (or higher)

General Features:

Power Input

5V, 1A through OSM LGA
Form Factor

30mm x 30mm (OSM Size-S)
Operating Temperature

-40°C to +85°C (Industrial)
Environment Specification

REACH & RoHS3 Compliant
*Supports only in STM32MP135 SOC

STM32MP135 based SBC

STM32P135 SBC Top View

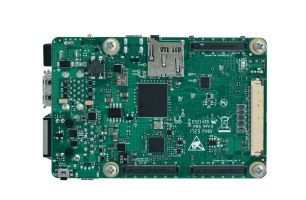

STM32P135 SBC Bottom view
  • STM32MP135 Solo Core CPU with 32-bit ARMv7 Architecture
  • Up to 1GB DDR3L Memory
  • Gigabit Ethernet Support
  • 18-bit RGB Display
  • Compact form Factor of 85mm x 56mm
