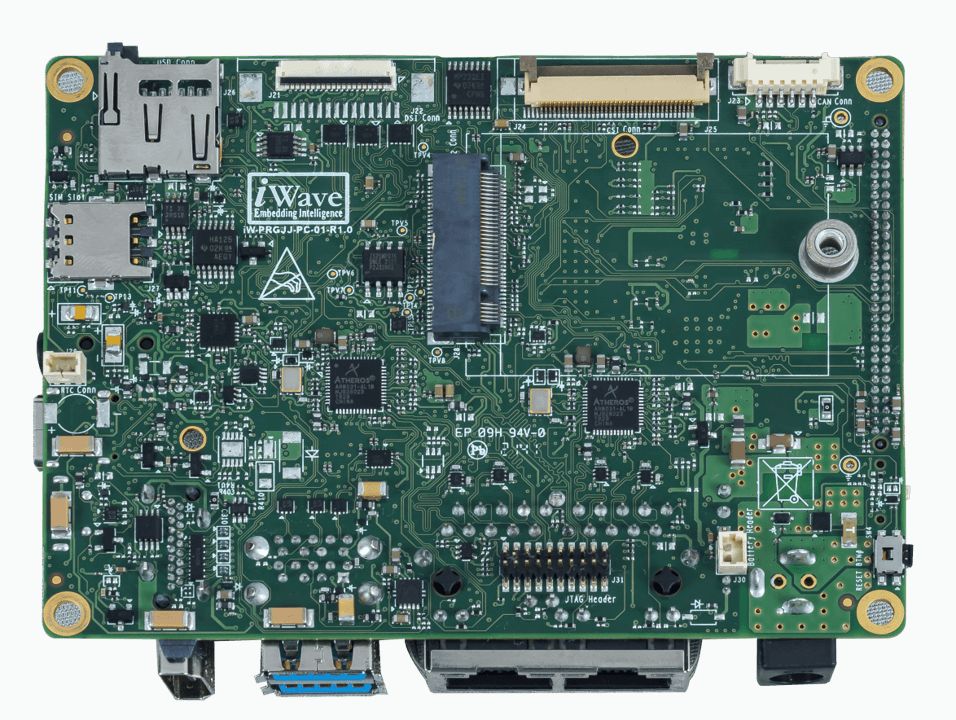

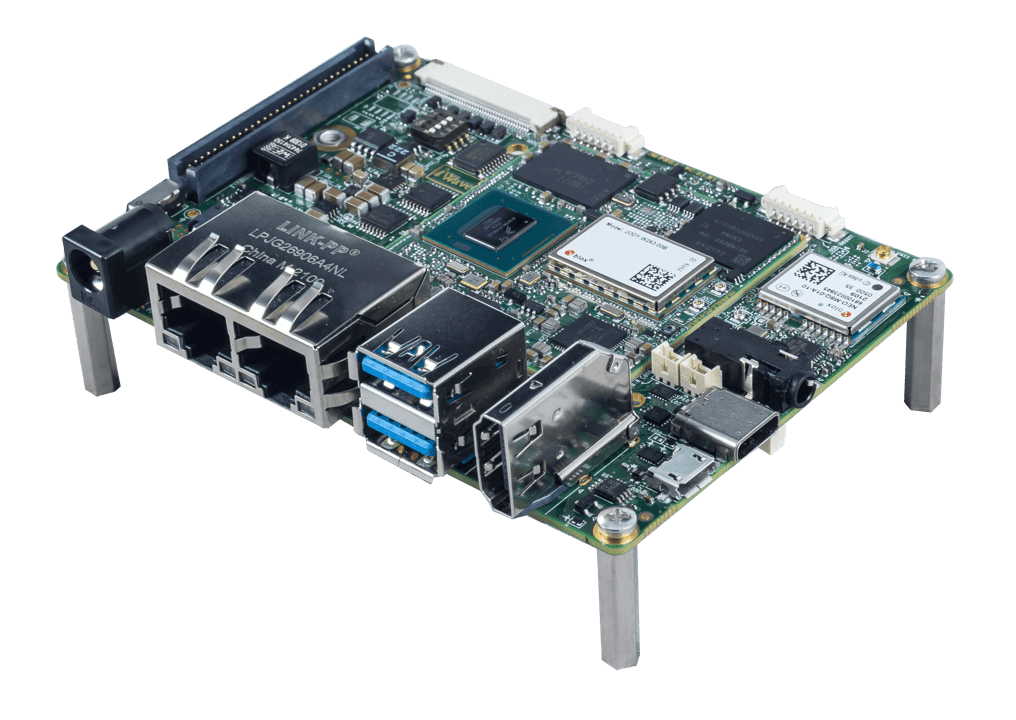

i.MX 8M Plus Pico ITX SBC

iW-RainboW-G40S^®

i.MX 8M Plus Q/QL/D CPU with Arm Cortex-A53 & Arm Cortex-M7
NPU with up to 2.3 TOP/s Neural Network performance
2GB LPDDR4 expandable up to 8GB and 16GB eMMC Flash
Multi-OS Platform Support
10+ years of Product Longevity Program
IEEE 802.11a/b/g/n/ac/ax* Wi-Fi & Bluetooth 5.0(ax is optional)
Dual 1000/100/10 Mbps Ethernet

Categories: Single Board Computers, COTS Module

SPECIFICATION

CPU	i.MX 8M Plus Quad : 4 x Cortex-A53, 1 x Cortex-M7, GPU, VPU i.MX 8M Plus Quad Lite : 4 x Cortex-A53, 1 x Cortex-M7 & GPU i .MX 8M Plus Dual : 2 x Cortex-A53, 1 x Cortex-M7, GPU, VPU
Memory & Storage	2GB LPDDR4 expandable up to 8GB 16GB eMMC Flash expandable up to 256GB Micro SD slot 16Mb SPI Flash

Audio/Video Features

HDMI Output through HDMI (Type A)
LVDS Display Connector x 1
3.5mm Audio IN/OUT Jack
Speaker Out Header
5.5inch MIPI DSI Display
2 Lane MIPI DSI Display (Optional)
MIPI CSI Camera Connector

Miscellaneous Interfaces

Debug UART Connector
RTC Battery Connector
JTAG Header
M.2 Key B Connector
- PCIe 3.0 ×1
- USB 2.0 x 1
- Nano SIM Connector

Expansion Connector Features

4 lane LVDS x 1 Channel
UART x 1
8 bit SD (optional)
SPI x 1 Port
PWM x 1
CAN x 1 Port

OS Support

Linux 5.4.70 (or higher)
Android 11 (or higher)
Ubuntu 20.04 (or higher)

General Features

Power Input	7V to 24V (By defualt, 12V)
Form Factor	100mm x 72mm
Operating Temperature	-40°C to +85°C
Environment Specification	REACH & RoHS3 Compliant

Note: Optional features are not supported in default configuration.
