iWave Unveils iW-RainboW-G64M System on Module Powered by Advanced Speedster7t FPGAs from Achronix

Through a collaboration with Achronix, iWave is excited to introduce the iW-RainboW-G64M System on Module (SoM). The SoM is powered by the revolutionary Achronix Speedster7t AC7t1500 FPGA, boasting unmatched high-performance capabilities tailored for AI/ML and high-bandwidth data acceleration applications.

This new SoM module provides designers with a simplified and highly integrated small form factor (120mm x 90mm) FPGA solution that integrates 16GB of GDDR6 and 8GB of DDR4 memory, high-speed connectors into 32 SerDes running up to 106Gbps, and i.MX 8x lite OSM. It can be easily connected to a carrier board for application-specific deployment.

Key Features of iW-RainboW-G64M

  • Achronix Speedster7t AC7t1500 FPGA
  • 8GB DDR4 with ECC & 16GB GDDR6 RAM support for FPGA
  • 32 channels of SerDes up to 106Gbps
  • i.MX 8XLite-based OSM
  • Dual Cortex – A35 & Dual Cortex-M4F cores running @1.2GHz
  • 8GB eMMC Flash and 2GB LPDDR4 for OSM
  • Gigabit Ethernet from OSM
  • 1x USB 2.0 OTG, 1x USB 2.0 for FPGA programming
  • Clock Synthesizer for On-SOM Clocks
  • PTP & Network SyncE Synchronizer
  • TPM2.0 Module
  • Commercial & Industrial Grade
  • 120mm x 90mm Form Factor

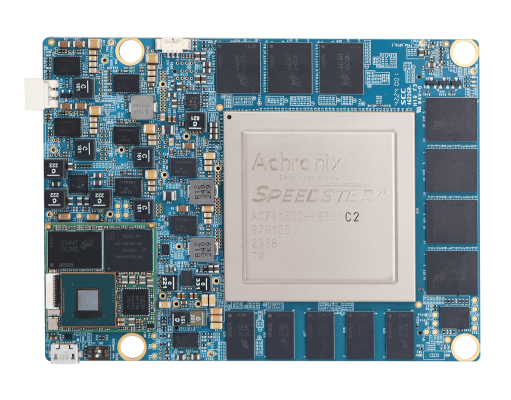

Achronix-Top View image

For designers looking to accelerate their Speedster7t FPGA designs, the iW-RainboW-G64M SoM provides a proven and tested platform that eliminates PCB design complexity by incorporating 16GB of GDDR6 and 8 GB of DDR4 memory, 32 channels of SerDes connectivity, and the FPGA power supply. With these components already integrated into the SoM module, customers can focus on designing their application-specific carrier board. This allows for rapid customization across a wide range of AI/ML, data centers, networking, and other data acceleration applications.

The iW-RainboW-G64M SoM includes iWave’s i.MX 8X Lite OSM to facilitate communication between the FPGA and other components on the SoM. The i.MX 8XLite incorporates a dual-core ARM Cortex-A35 and Cortex-M4F processor, which adds additional software flexibility for processing workloads.

“The launch of the Speedster7t AC7t1500 System on Module marks a significant milestone in applications involving high-performance and high bandwidth workloads, “said Sheik Abdullah, VP of Engineering at iWave. “By integrating the unparalleled performance of the Speedster7t FPGAs in a compact and versatile module, we are enabling developers to push the boundaries of innovation in diverse application domains.”

iWave also provides comprehensive toolchain support through the Achronix Tool Suite, enabling seamless mapping of designs into Speedster7t FPGAs, ensuring ease of development and deployment.

Click here for more details on the Achronix Speedster7t-based System on Module.

About iWave

iWave is an embedded systems engineering and solutions company that designs solutions for the industrial, medical, and automotive vertical markets. Building on a core competency of embedded design and manufacturing, iWave boasts an extensive portfolio of System on Modules and Single Board Computers that enable customers in their product development journey.
If you have any queries, please contact

About Achronix Semiconductor Corporation

Achronix Semiconductor Corporation is a fabless semiconductor corporation based in Santa Clara, California, offering high-end FPGA-based data acceleration solutions, designed to address high-performance, compute-intensive, and real-time processing applications. Achronix is the only supplier to have both high-performance and high-density standalone FPGAs and licensed eFPGA IP solutions. Achronix Speedster®7t FPGA and Speedcore™ eFPGA IP offerings are further enhanced by ready-to-use VectorPath® accelerator cards targeting AI, machine learning, networking, and data center applications. All Achronix products are fully supported by the Achronix Tool Suite which enables customers to quickly develop their custom applications.

Achronix has a global footprint, with sales and design teams across the U.S., Europe, and Asia.
