AMD
Showing 65–80 of 94 results
-
Zynq UltraScale+ MPSoC ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1
Zynq UltraScale+ MPSoC ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1
- Quad-core Arm Cortex-A53 MPCore @1.5GHz
- 4 High-Speed Transceiver lanes (Up to 12.5Gb/s)
- 16GB eMMC Flash
- Gigabit Ethernet PHY & USB2.0 transceiver
- Form Factor: 50mm X 60mm (REN)
iW-RainboW-G36M®Read more -
Kintex UltraScale+ FPGA
Kintex UltraScale+ FPGA
- Dual ARM Cortex-A7 of 1.2GHz speed
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- Two 240pin High-Speed Connectors with 172 IO
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- Form Factor:110mm x 75mm (OREN+)
iW-RainboW-G47M®Read more -
Virtex UltraScale+ FPGA
Virtex UltraScale+ FPGA
- Dual ARM Cortex-A7 core of 1.2GHz speed
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- 4 lanes of 6Gbps SERDES from CPU
- Form Factor: 110mm x 75mm (OREN+)
iW-RainboW-G47M®Read more -

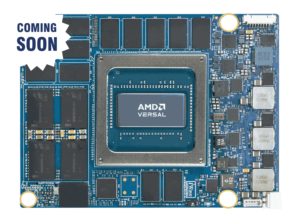

Versal Premium SOM
Versal Premium SOM
- Dual-core Arm Cortex-A72 and Cortex R5F
- 68 channels of GTYP transceivers up to 32Gbps
- 16 channels of GTM transceivers up to 112Gbps
- 96 LVDS Pairs and 192 SE FPGA IOs
- Form Factor: 90mm x 120mm
iW-RainboW-G63M®Read more -

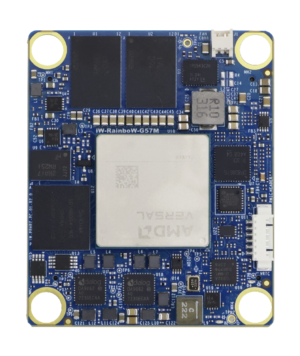

Versal AI Edge/Prime SOM
Versal AI Edge/Prime SOM
- Dual ARM Cortex-A72 core of 1.6GHz speed
- Up to 328K Logic cells & 150K LUTs
- 64bit, 4GB LPDDR4 (Expandable)
- 16GB eMMC Flash and 256MB QSPI Flash
- Form Factor: 50mm x 60mm
iW-RainboW-G57M®Read more -
Zynq UltraScale+ RFSoC SOM
Zynq UltraScale+ RFSoC SOM
- Quad Arm Cortex-A53 @1.3GHz
- 16 ADC Channels support up to 2.5Gsps
- 16 DAC Channels support up to 10Gsps
- 16 GTY Transceivers support up to 28.21Gbps
- Form Factor: 90mm x 100mm(BRYN)
iW-RainboW-G42M®Read more -
ZU48/ZU47/ZU43/ZU28/ZU27/ZU25DR – Zynq UltraScale+ RFSoC SOM
ZU48/ZU47/ZU43/ZU28/ZU27/ZU25DR – Zynq UltraScale+ RFSoC SOM
- Dual Cortex-R5F @533MHz
- Up to 930 Logic cells & 425K LUTs
- 64bit, 8GB DDR4 RAM with ECC for PS
- 64bit, 8GB DDR4 RAM for PL
- Form Factor: 82mm x 100mm(BRYN)
iW-RainboW-G60M®Read more -
Virtex UltraScale+ SOM
Virtex UltraScale+ SOM
- Dual ARM Cortex-A7 core of 1.2GHz speed
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- 4 lanes of 6Gbps SERDES from CPU
- Form Factor: 110mm x 75mm (OREN+)
iW-RainboW-G52M®Read more -
Virtex UltraScale+ FPGA SOM
Virtex UltraScale+ FPGA SOM
- Dual ARM Cortex-A7 core of 1.2GHz speed
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- 4 lanes of 6Gbps SERDES from CPU
- Form Factor: 110mm x 75mm (OREN+)
iW-RainboW-G47M®Read more -
Kintex UltraScale+ FPGA SOM
Kintex UltraScale+ FPGA SOM
- Dual ARM Cortex-A7 of 1.2GHz speed
- Dual 4GB FPGA-DDR4 with ECC (64bit + 8bit)
- Two 240pin High-Speed Connectors with 172 IO
- 2GB DDR4 for CPU with ECC (32bit+4bit)
- Form Factor:110mm x 75mm (OREN+)
iW-RainboW-G47M®Read more -
ZU19/ZU17/ZU11- Zynq UltraScale+ SOM
ZU19/ZU17/ZU11- Zynq UltraScale+ SOM
- Quad/Dual Arm Cortex-A53 @1.5GHz
- 64bit, 8GB PS DDR4 RAM with ECC
- 128bit, 16GB PL DDR4 RAM
- Up to 1143K Logic cells & 522K LUTs
- Form Factor: 75mm x 110mm
iW-RainboW-G35M®Read more -

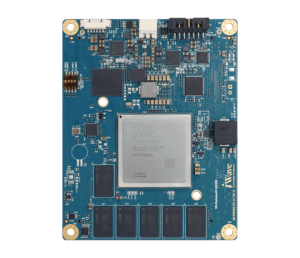

ZU15/ZU9/ZU6- Zynq UltraScale+ MPSoC System on Module
ZU15/ZU9/ZU6- Zynq UltraScale+ MPSoC System on Module
- Quad-core Arm Cortex-A53 MPCore @1.5GHz
- 4 High-Speed Transceiver lanes (Up to 12.5Gb/s)
- 16GB eMMC Flash
- Gigabit Ethernet PHY & USB2.0 transceiver
- Form Factor: 50mm X 60mm (REN)
iW-RainboW-G65M®Read more -
ZU7/ZU5/ZU4- Zynq UltraScale+ SOM
ZU7/ZU5/ZU4- Zynq UltraScale+ SOM
- 64bit, 8GB PS DDR4 with ECC & 16bit
- Up to 504K Logic cells & 230K LUTs
- Two 240pin High Speed Connectors with 142 IOs
- 16 Channels GTH Transceivers upto 16.3Gbps
- Form Factor: 75mm x 95mm (OREN)
iW-RainboW-G30M®Read more -

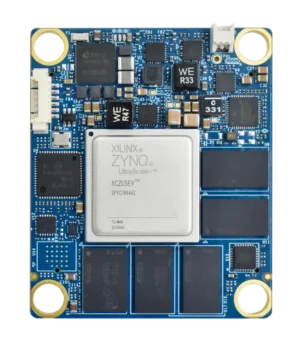

Zynq UltraScale+ MPSoC ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1 SOM
Zynq UltraScale+ MPSoC ZU5/ZU4/ZU3T/ZU3/ZU2/ZU1 SOM
- Quad-core Arm Cortex-A53 MPCore @1.5GHz
- 4 High-Speed Transceiver lanes (Up to 12.5Gb/s)
- 16GB eMMC Flash
- Gigabit Ethernet PHY & USB2.0 transceiver
- Form Factor: 50mm X 60mm (REN)
iW-RainboW-G36M®Read more -
Zynq 7000 SODIMM SOM
Zynq 7000 SODIMM SOM
- 512MB DDR3 RAM Expandable up to 1GB
- 200pin SODIMM Edge Connector
- Up to 120 FPGA IOs
- Wi-Fi & Bluetooth Connectivity
- Form Factor: 67.6mm x 37mm
iW-RainboW-G28M®Read more -
ADC & DAC PCIe Card Powered by RFSoC
ADC & DAC PCIe Card Powered by RFSoC
- Quad/Dual Arm Cortex-A53 @1.3GHz
- 8GB, 64bit DDR4 RAM with ECC for PS
- 32GB eMMC Flash for Storage
- 3/4 Length PCIe Gen3 x8 Host Interface
- Form Factor: 254mm x 111.15mm (¾ Length PCIe)
iW-RainboW-G42P®Read more
