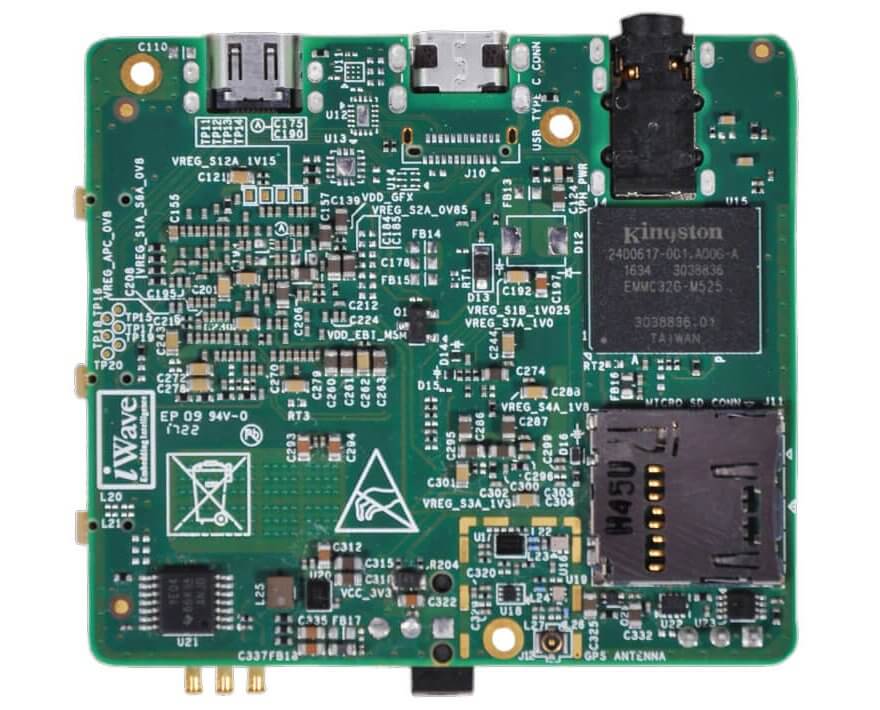

Snapdragon 820 SBC

Snapdragon 820 SBC

iW-RainboW-G25S

  • 64-bit Quad Kryo Snapdragon 820 CPU
  • Dual Kryo cores Gold cluster @ (2.15 GHz)
  • Dual Kryo cores Silver cluster @ (1.6 GHz)
  • Adreno 530 3D Graphics @624MHz
  • H.265 4K60 decode, 4K30 encode
  • Hexagon 680 DSP @ 825MHz
  • 14-bit Qualcomm Spectra ISP
  • 802.11ac Wi-Fi & BT 4.1
  • Qualcomm IZat Gen8C GPS
  • 3GB LPDDR4 memory

Specification

  • SOC: Qualcomm APQ8096

    • 64-bit Quad Kryo core
    • Adreno 530 3D Graphics @624MHz
    • H.265 4K60 decode, 4K30 encode
    • Qualcomm Hexagon DSP
  • Power Management:

    • PM8996 PMIC
    • PMI8996 Charger
  • Memory

    • 3GB LPDDR4 (Expandable to 6GB)
    • 32GB eMMC (Expandable to 128GB)
    • Micro SD Slot
  • Communication

    • 802.11ac Wi-Fi + BT module
    • WGR7640 GPS
    • USB3.0 Type-C Connector (Optional)
    • USB2.0 Micro AB Connector
  • Audio/Video Features:

    • WCD9335 Audio Codec
    • Audio In/Out Jack
    • Micro HDMI Connector
  • 30P Connector:

    • MIPI CSI x 4 lanes
    • MIPI DSI x 2 lanes
    • I2C x 3 Ports
  • Miscellaneous Features:

    • Tactile Switch x 3
    • Console debug header
  • Power Supply:

    • 3.7V Li-ion Battery connector
    • 5V Input through USB Micro AB
  • OS Support

    • Android Marshmallow or higher
  • Temperature support

    • 0°C to +70°C
  • Form Factor

    • 56mm x 50mm
  • Environment Specification

    • RoHS & REACH Compliant
