iW-RainboW-G58D: Get started with Agilex 5 SoC FPGA(B32A) SOM Development Platform

Unpacking

Remove the Development Platform from box and place above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Also make sure that, below deliverables are received without any physical damage.

Development kit contains:

  • Agilex 5 SoC FPGA(B32A) SOM Development Platform
  • 12V, 5A Power Supply
  • Safety guidelines
  • USB Debug cable
  • Heatsink + Fan
Safety Guidelines

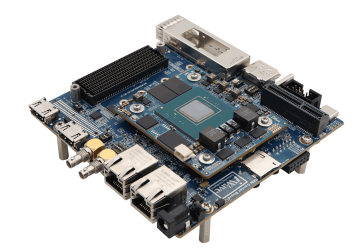

Angle view of Agilex 5 Development kit

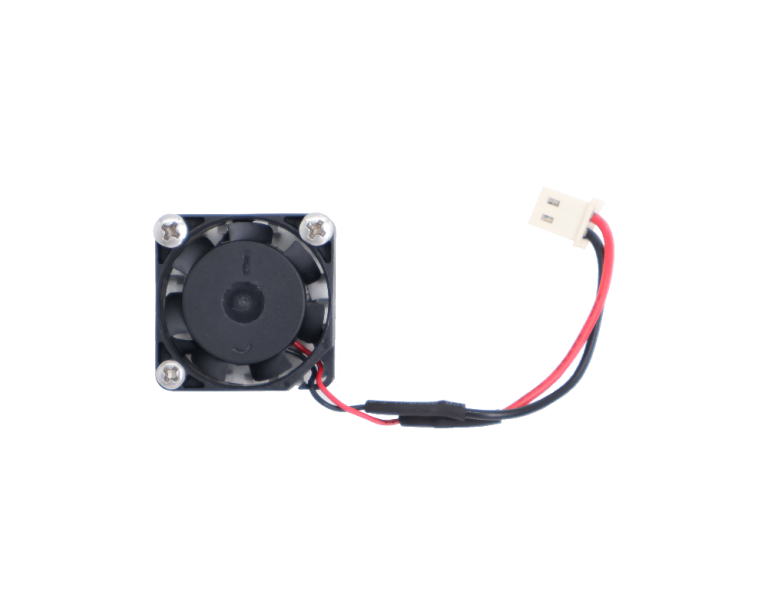

Agilex 5 Fan image

SAFETY GUIDELINES

Agilex 5 SoC FPGA SOM
Development Platform

Heatsink+FAN

Agilex5 Debug USB Cable
Agilex5 Power image

USB Debug Cable

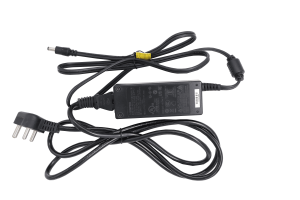

12V, 5A Power Supply

Get to know​

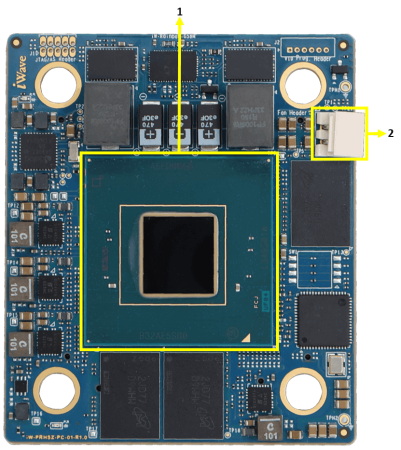

Agilex5 SOM Pin image

Agilex 5 SoC FPGA(B32A) SOM – Top view

  1. Agilex 5 SoC FPGA (B32A)

2. Fan connector

Agilex5 SOM bottom image

Agilex 5 SoC FPGA(B32A) SOM – Bottom view

3. PMIC Programing Header
4. Board to Board connector 1

5. Board to Board connector 3
6. Board to Board connector 2

Agilex5 Devkit Top image

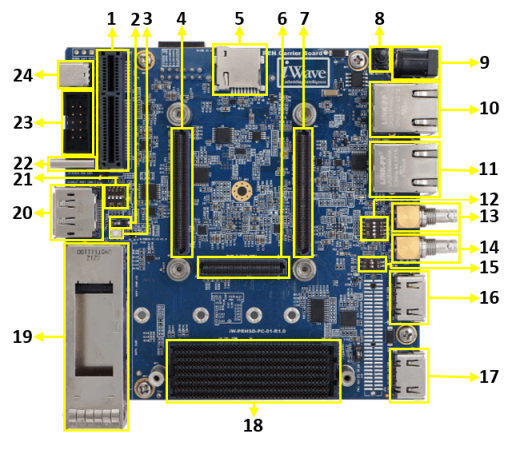

Agilex 5 SoC FPGA(B32A) Development Platform – Top view

1. PCIe x4 Connector
2. JTAG SEL Switch
3. RESET Switch
4. Board to Board Connector 1
5. Micro SD Connector *
6. Board to Board Connector 3
7. Board to Board Connector 2
8. ON/OFF Switch
9. Power Jack
10. SGMII Ethernet Jack
11. RGMII Ethernet Jack
12. Boot Media Selection

13. SDI OUT
14. SDI IN
15. GPIO DIP Switch
16. HDMI OUT
17. HDMI IN
18. FMC+ Connector
19. QSFP Connector
20. Display Port
21. LS_MUX/PCIE_SEL-Switch
22. Debug UART Connector
23. JTAG Connector
24. USB Type C Connector

PRHSD_BOTTOM

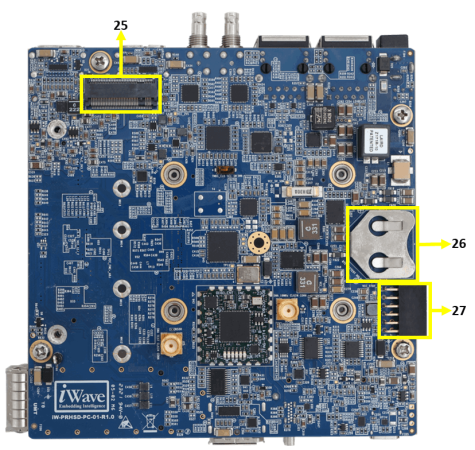

Agilex 5 SoC FPGA(B32A) Development Platform – Bottom view

25. M.2 SATA **
26. RTC Battery Holder

*Optional
**Not Support

27. PMOD Connector

Heat Sink Integration

iW-RainboW-G58D Agilex 5 SoC FPGA(B32A) SOM Development platform comes with Heatsink+Fan attached to it. Make sure to power up the platform only with Heatsink+Fan attached. Below is the Heatsink+Fan integration procedure for reference.

Agilex5 FAN image
G58D-fan_peeling

Heatsink + Fan

Peel off Thermal pad sticker

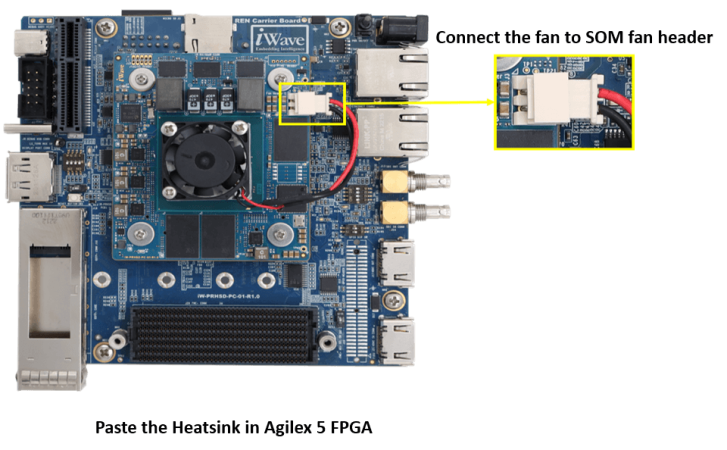

Agilex 5 FAN Connection

Boot Switch Setting

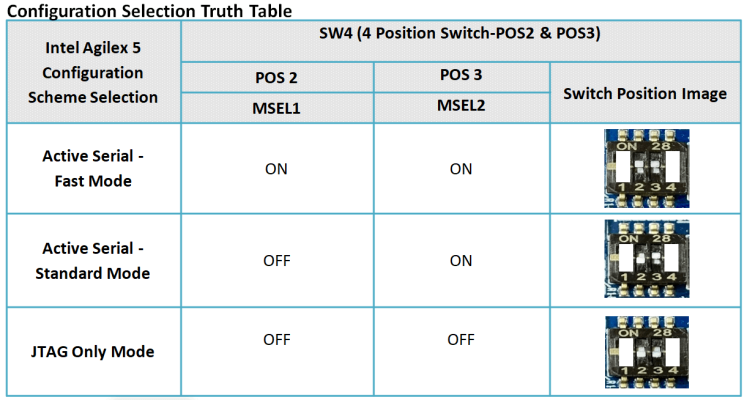

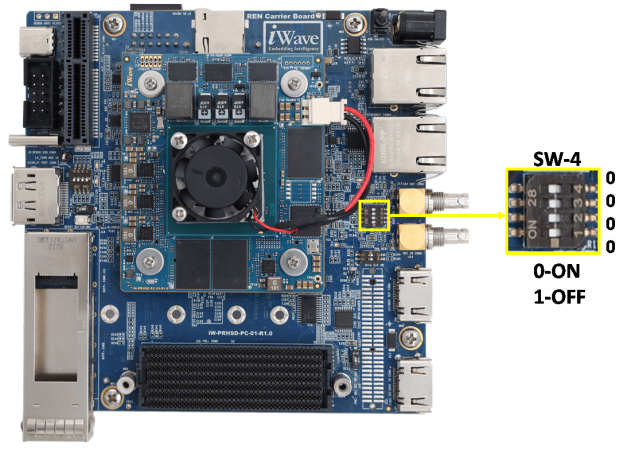

Make sure On-Board Switch (SW4) is set properly as shown below image.

Agilex5 Switch image

SW4-Boot selection Switch

Agilex 5_Switch Table

Debug Port Setting

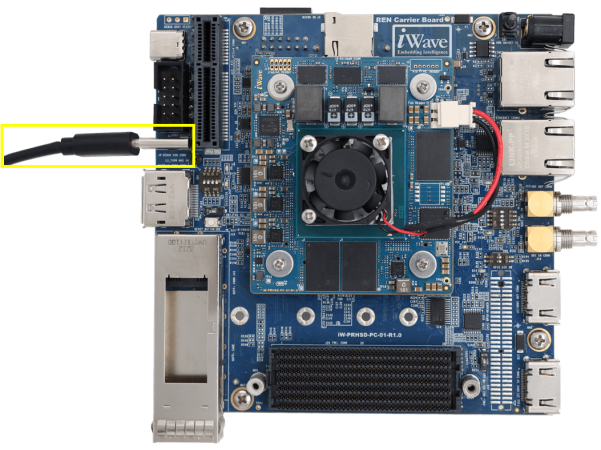

Connect Type-A end of USB cable to PC and Type-C end of USB cable to Development platform’s debug USB Type-C connector(J8) as shown below.

G58D-Debug connection

JTAG Connection

iW-RainboW-G58D Agilex 5 SoC FPGA(B32A) SOM Development platform support JTAG

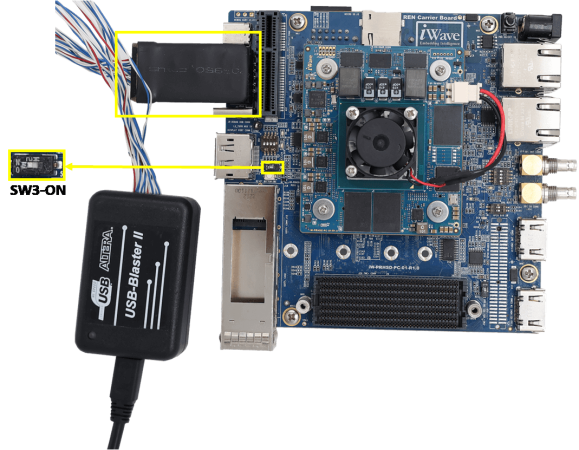

interface for FPGA Programming and debugging. Use the USB Blaster to connect Carrier Board.
Ensure that Switch-3 on the carrier board is turned ON.

Example USB Blaster which is tested with this Platform is mentioned below.
USB Blaster-2
Part Number : PL-USB2-BLASTER from INTEL

Agilex5 JTAG Connection image

Powering ON

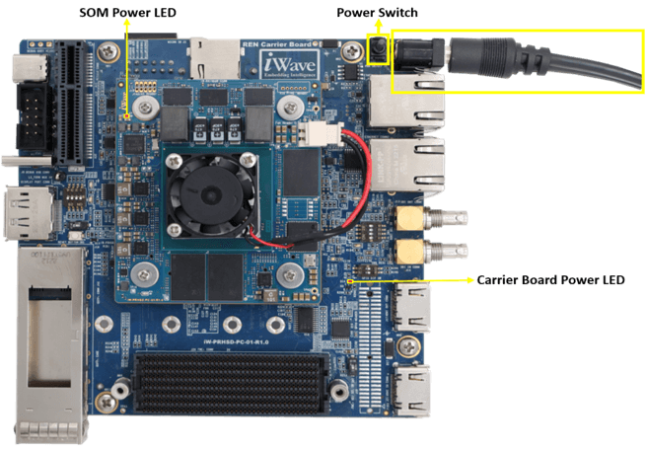

Connect the Power supply plug to the Power connector (J2) of the Development platform as shown below and switch ON the power supply. Once power is applied to the Development platform, the power LED in the Development platform will glow as shown in the below image.

Agilex5-POWER connection

Warning:

  • Do not try to connect any other Power Supply other than supplied along with Agilex 5 SoC FPGA(B32A) SOM Development Platform.
  • Do not plug or remove the Agilex 5 SoC FPGA(B32A) SOM from carrier board with live power.
  • Contact iWave, if power LEDs are not glowing.

Test Environment setup

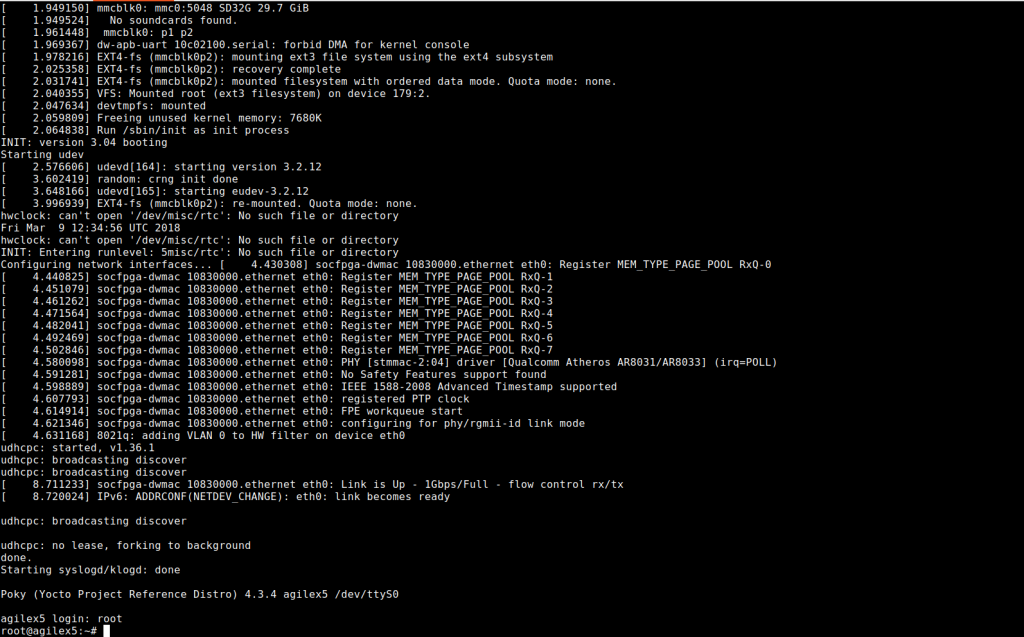

Once power is applied to the Development Platform as explained in the previous section,
boot messages being displayed in the debug terminal of the PC/Laptop which is connected
to the Development platform. Press any key in terminal immediately to see the command
prompt of the Boot loader or wait until OS boots. After OS boots, Login prompt being displayed
in the debug terminal. Enter username and password as “root” to get the Linux command
prompt as shown below.

Command Prompt
